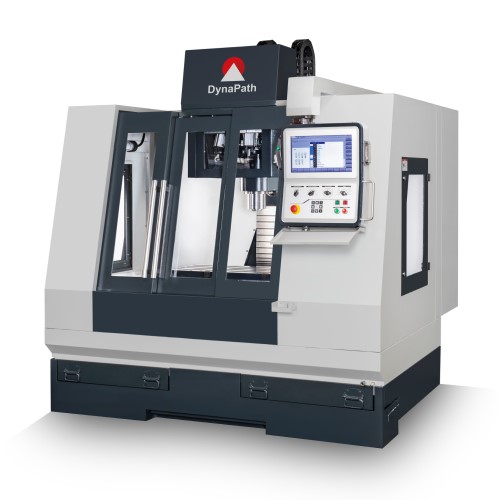

The DMC-845L milling center is a standard fully-enclosed machine for job shops, tool rooms, design prototyping and production environments.
DynaPath DMC mill centers feature a unique eight-station tool changer that enables batch production using standard 40-taper tooling. The X, Y, and Z axes ways use roller-type linear rails that offer a balance of high rigidity and speed, allowing a rapid speed of 20 m/min (787 IPM). The 8000 RPM belt-driven spindle is dual wound, offering improved torque characteristics in the low winding when operating at under 1800 RPM. For the operator, the versatile WinDelta control allows manual DRO, semi-automatic, and also fully automatic operation of the machine by running standard G-Code. Furthermore, Conversational Programming and DXF CAD capabilities enable the operator to program right at the machine.
DynaPath WinDelta CNC Control with:
- Color LCD Touch Screen
- Conversational Programming
- DXF Import
- Standard ISO G-Code support
Includes:
- 8-Station Automatic Tool Changer.
- Standard peck rigid tapping and peck drilling cycles.
- Standard CAT-40, 8,000 RPM spindle.
- X, Y, Z Linear Roller Ways
- Standard automatic lubrication and coolant systems.
- Standard complete enclosure
- Optional 12,000 rpm direct-drive psinlde with CTS.
- Optional 4th Axis rotary axis capable of simultaneous motion.
|
